Extended A frame supa gal steel22.6ft family 3-Bunks -16 alloy rims all terrain
tool boxYes with slide out two split,1 side none-back table split

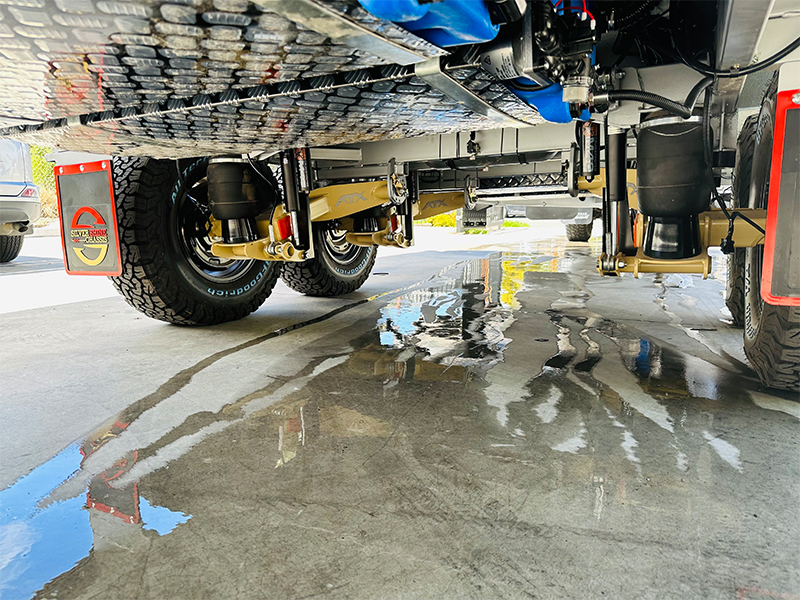

SuspensionCruise master ATX Air bag suspension-4.5Tn-auto
Bumper bar3arm
Water tankRoto moulded- 2*140 L general water tank selection 1 to 2 isolation, 1-140L fresh water plumbed to kitchen sink,1 small grey water tank.galvanized sheet protector under
Gas bottle2 of 9kg, Galvanized sheet full tunnel boot
Pull out stepdouble
Anderson plug12 pin plug, standard break away system
Tyre17 inch alloys,1 spare wheel-All Terrain-BFG ko2
Electric brakes12 inch electric
Tunnel BOOTLarge boots at the front full length ,2nd full length boot

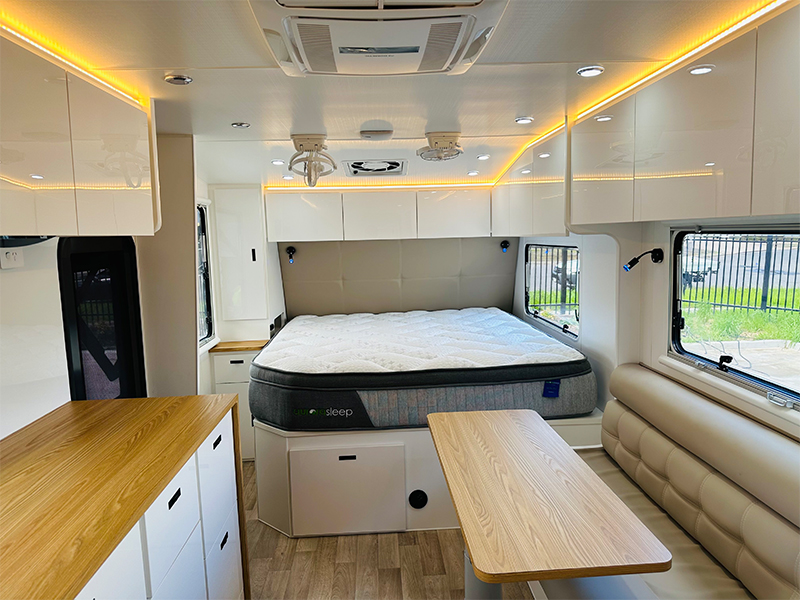

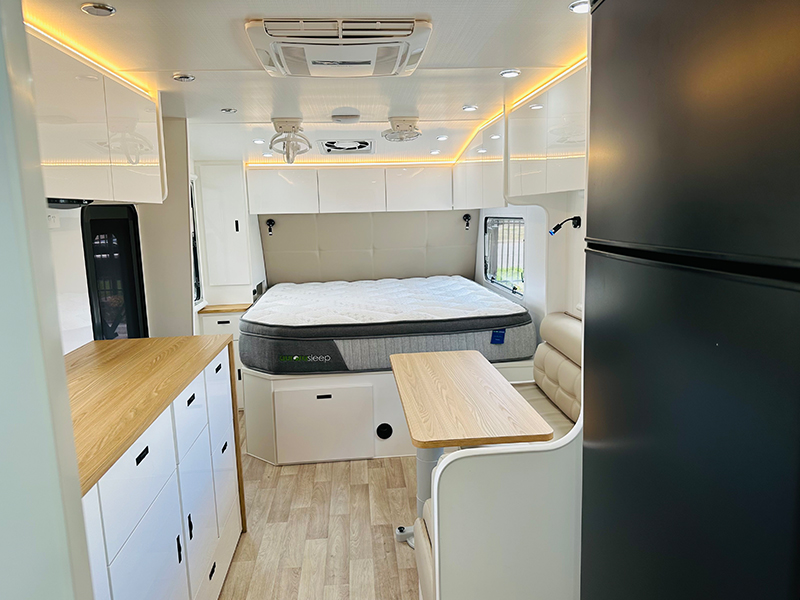

King size -bedClose to right wall boot access from outside-over head cupboards on right wall
Floor and roof1 piece floor-Composite roof
Stone guardYes-1meter space from guard to Hitch
Rear wood boxYes -light weight
Electric black Jacks jockey
stablizer4 legs
Slide out portable fridgeARB 60L or Finch australia
HitchDO45-1 M hitch to stone guard
AppliancesStandardCustomer Options
StoveInduction cook top Thetford top line 902 2 plates
Range hoodRanger with fan and light
MicrowaveYes-Under kitchen+space and 240v connection for air fryer
FridgeDometic compres refrigerator- 270L
AudioYes 2-internal,2-external speakers, marine grade-Fusion stereo
Tv27 smart Tv extended TV brackets
External speakersYes 2
Air conditionerDometic Harrier plus AC wired
Washing machine3.5kg front loader/Wall mount if possible
Internal speakerYes 2

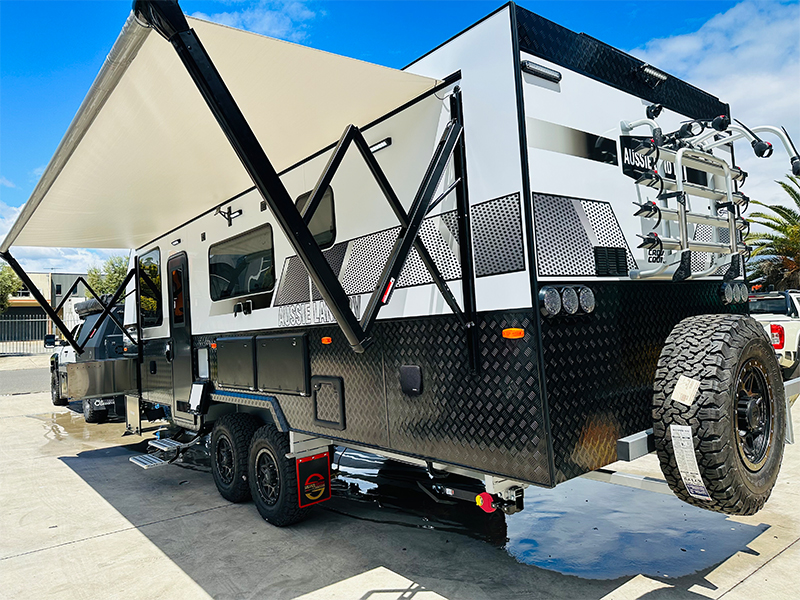

Awning18ft aussie traveller

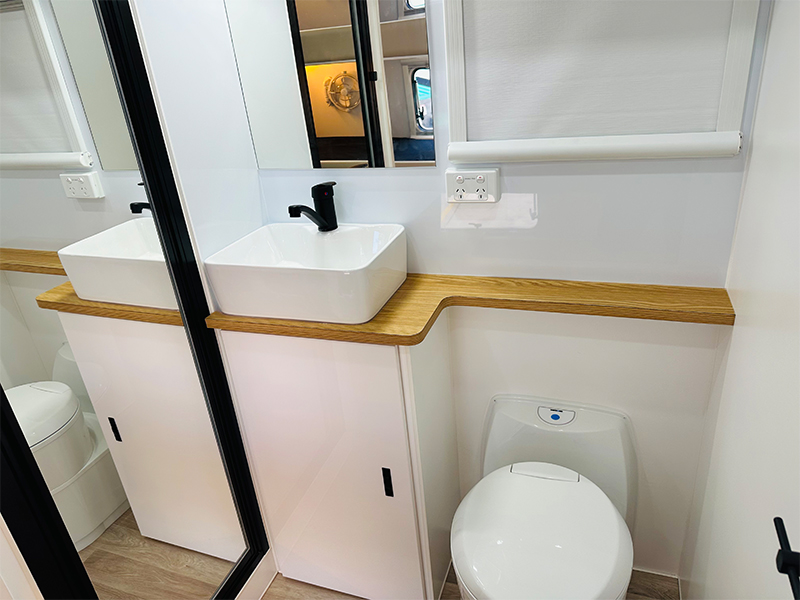

toiletThetford ceramic bowl toiletcassette
King bedBed against wall access from outside to bed storage -boots with checker plates
Diesel heaterYes-Truma Vario heatTank behind tool box
Bike rack5 bikes-fiamma
Latches on fridge ventsDust proof-Dometic DRS air filter
Dust reductionCarafan Sahara-CP700
Wi-fiYes, mobile signal boosterand RV wifi-Testra if available
DexterSway command
Windows and hatchesLarge
Back RobeWashing machine+3 drawers+shelves with mirror door
Bigger opening vanityNo door
curtainsBunk curtains, Partician curtain
Electrical Standard Customer Options
Anderson plug Yes
Car plug7pin, Anderson plug, reverse camera

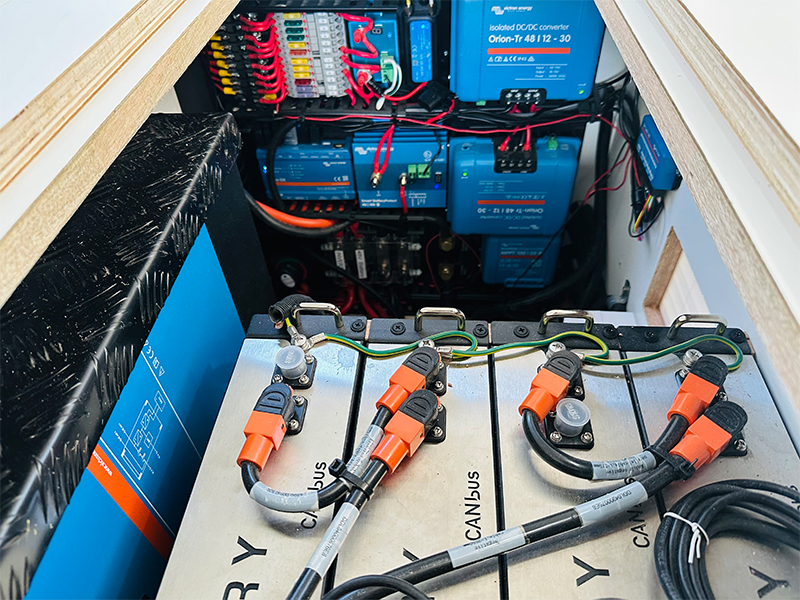

Batteries 800 ah lithium batteries -victron
Inverter Yes 5000w -victron
AC/DC charger AC-60A-DC-40A
AntennaWine guard
Reversing camera Yes-Rear top
Solar panel 4*400=1600w
TV points2-Tv bracket Inside and outside TV box
LED LightsInternal ceiling lights, under awning 2 lights, front bright light, back and off side ,top of tunnel boot
Break away system Yes Standard
Water level gage Yes
48 v system and charger
Sirocco fan 2 K bed each in bunks=5
Usb on all reading lights2 Q bed,2 lounge,all bunks,2 in kitchen
240v inlet and outletYes,
12 V and 240v connection connectionExtra tool box ,tunnel boot- fridge,2nd boot slide out
240v power points Kitchen,robe,outside +
Boot lightsBoot lights inside each boot
Strip LightsOH cup boards, Door steps
Isolation switch to bedTo turn all lights off
Plumbing Standard Customer Options
Hot water systemInstantaneouse hot water system-Camec or Destination RV
Kitchen sink and tapBlack sink and black tap, filter tapBlack pack-Square kitchen
External showerYes- hot and cold -Rear
Basin and tapWhite basin and Black tap
Water pump12v water pump*2
Water fillerYes
Tap on A frameyes
Grey water tankYes

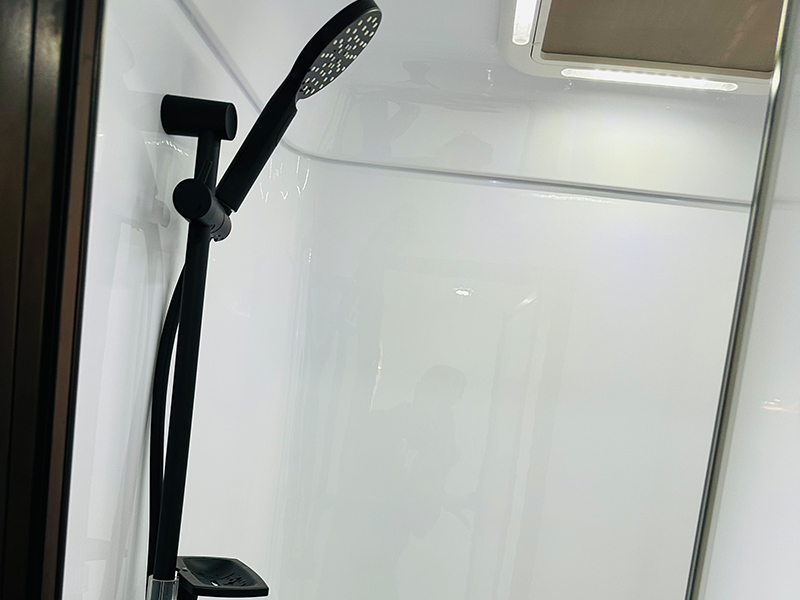

Shower and shower setOne piece fibre glass shower with hatch/fan
2*140L general water tank 1 to 2 isolation, 1-140L fresh water plumbed to kitchen sink,1 small grey water tank.galvanized sheet protector under 2 pump
Colours Standard
Floor vinyl
Bench top
Splash back
Upholstery back
Upholstery base
Overhead doors
Bottom doors
Full slide out pantryyes
TableL lounge to tic cushion to bed
Composite top
Checker plate bottom800mm height
Additional features

AUD:150000-Including GST
